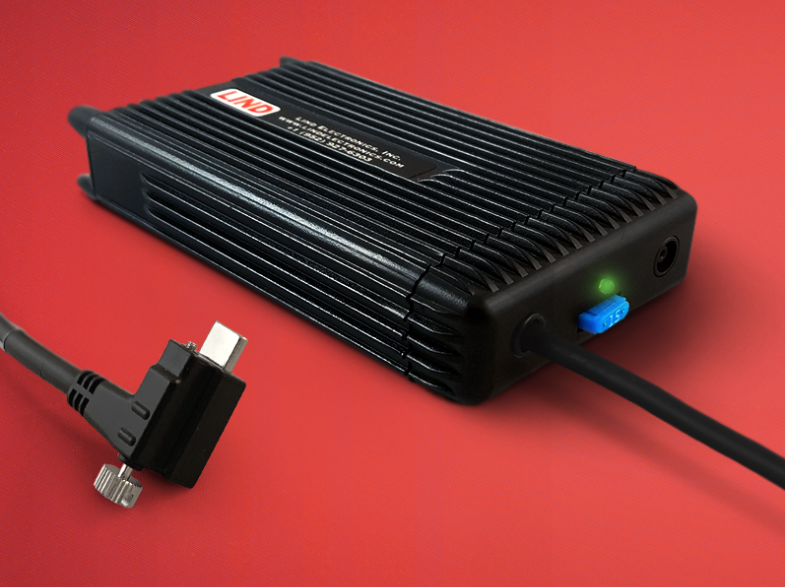

Lind 100W 12-32VDC Vehicle Adapter Right Angle USB-C Connector with Screw-Pin (Suitable for Dell 7230 and 5430)
The Lind USBC100-5487 DC/DC Power Adapter is designed to power your mobile power devices that require a USB-C input connector for power. This USBC power adapter is capable of providing a maximum of 100 Watts.
– Cig Plug 91cm Input Cable
– 90° R/A USB-C with Screw-Pin Output Cable
Features
• Low Input Voltage Cut Off (LIVCO)
• 10-sec LIVCO delay
• High Input Voltage Cut Off
• Output Overcurrent Protection
• Internal Over Temperature Protection
• VBUS to CC short protection
• High Output Voltage Limit
• Automatic Restart of Adapter
• ESD protection on VBUS, CC lines
• Full current-limiting capability in PPS mode
• Supported USB-C Charging Protocols:
– USB-C
– USB PD 3.0
– USB BC 1.2 (legacy charging)
Technical Specifications
• Input Voltage — 11-16 or 11-32 VDC
• Output Voltages — 5V @ 3A, 9V @ 3A, 15V @ 3A and 20V @ 5A
• PPS (programmable power supply) modes:
– 5V-16.9V (20mV increments), 0-3A (50mA increments)
– 17-20V (20mV increments), 0-5A (50mA increments)
• Output voltage ripple — 150mV at 100W load
• Weight: 370 gram (excluding cables)
• Dimensions: 135 x 75 x 25 mm
• Operating Temp: -20 to +40 C
• Storage Temp: -40 to +85 C
